Collapse Clause¶

The collapse clause is an important feature for optimizing nested loops in parallel computing. When applied, it allows the entire section of the iteration to be divided among the available number of threads. Specifically, if the number of iterations in the outer loop matches the number of available threads, the outer loop can be effectively divided based on the number of threads.

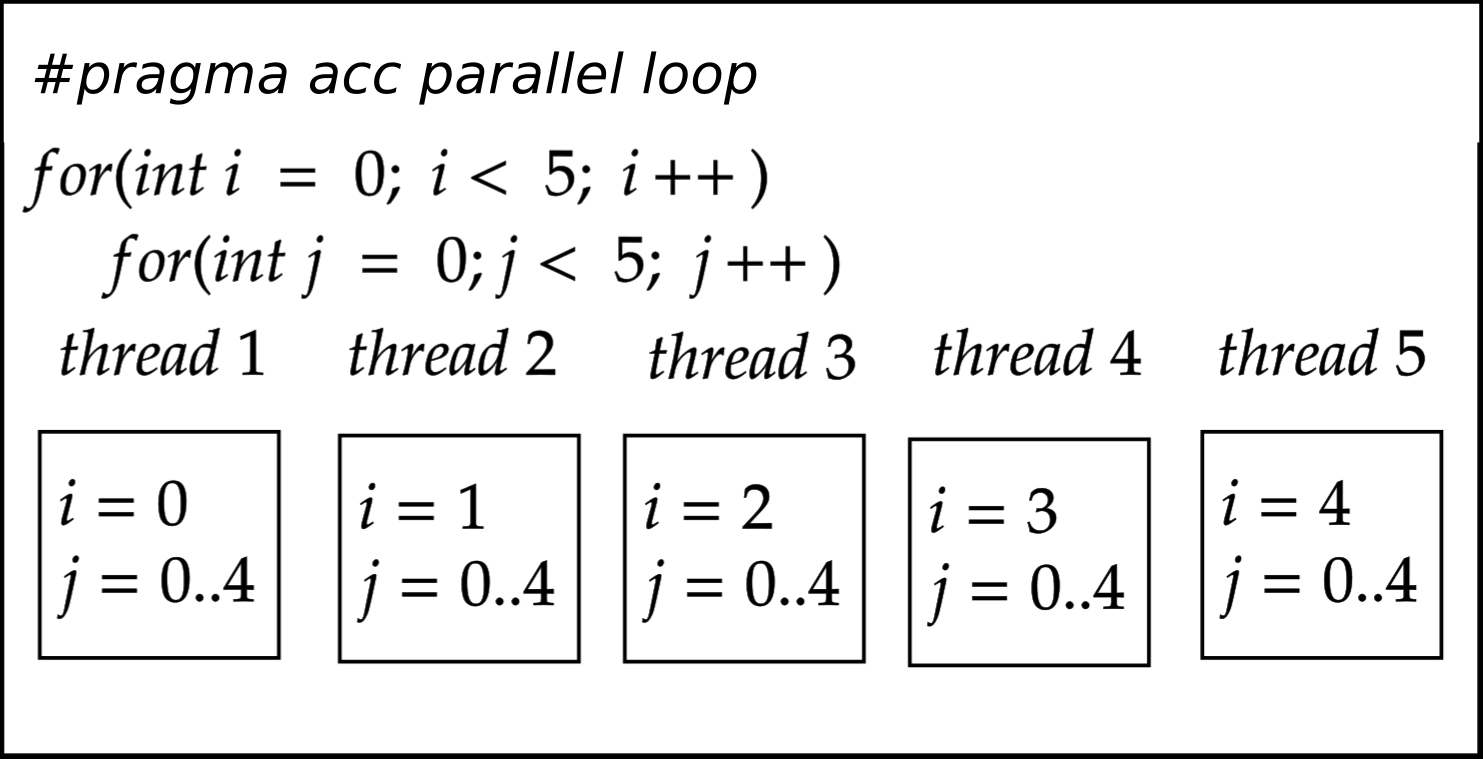

As illustrated in the figure below, without the use of the collapse clause, only the outer loop is parallelized. This means that each iteration of the outer loop will have a corresponding N number of inner loop executions, which is not the desired outcome for efficient parallel processing.

../_images/parallel-loop-acc.png — Effect of not using the `collapse` clause.¶

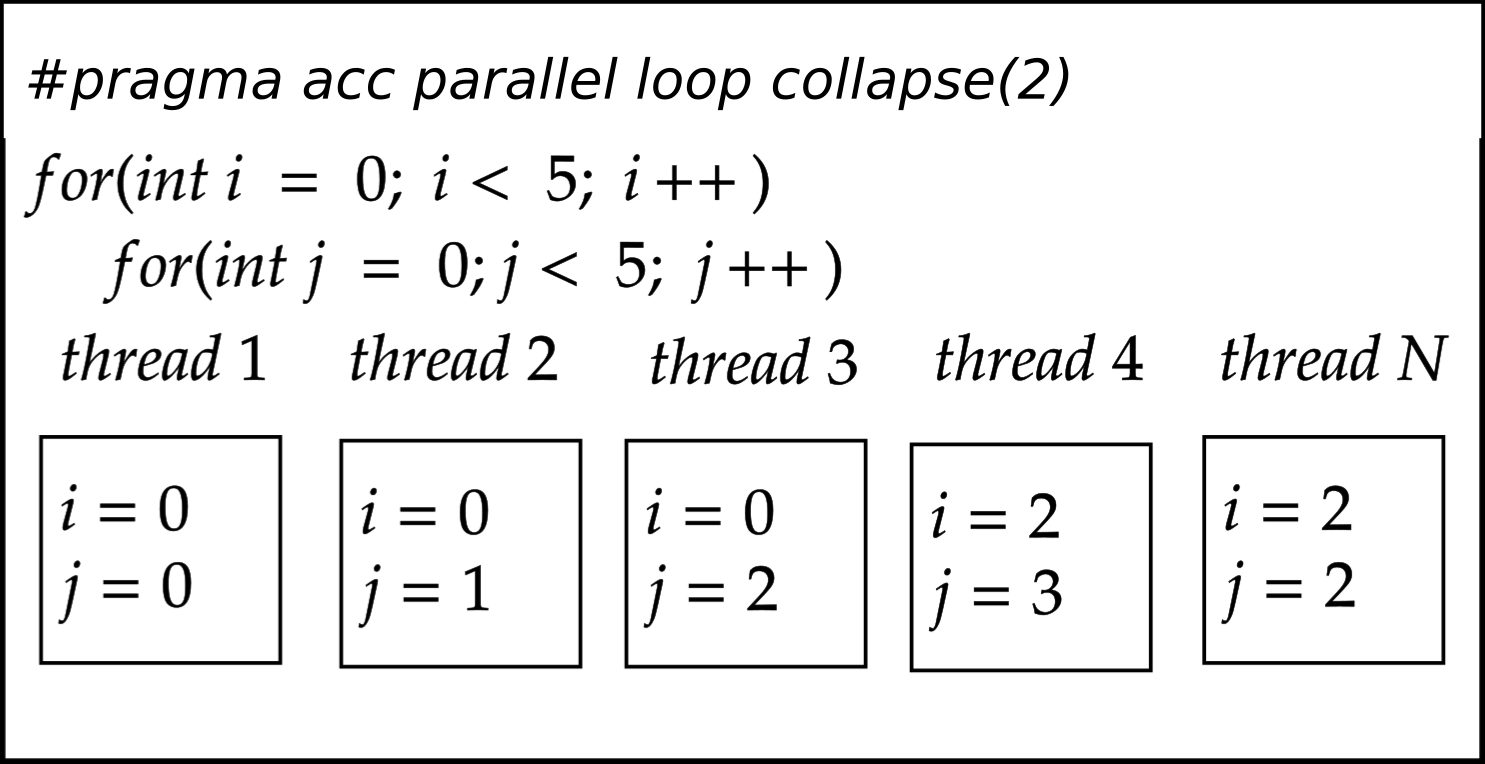

To optimize the utilization of threads, especially on GPUs with a higher number of threads available, such as the Nvidia A100 GPU, we implement the collapse clause. This adjustment enables all available threads to participate in executing every single iteration, as demonstrated in the figure below.

../_images/parallel-acc-collapse.png — Effect of using the `collapse` clause.¶

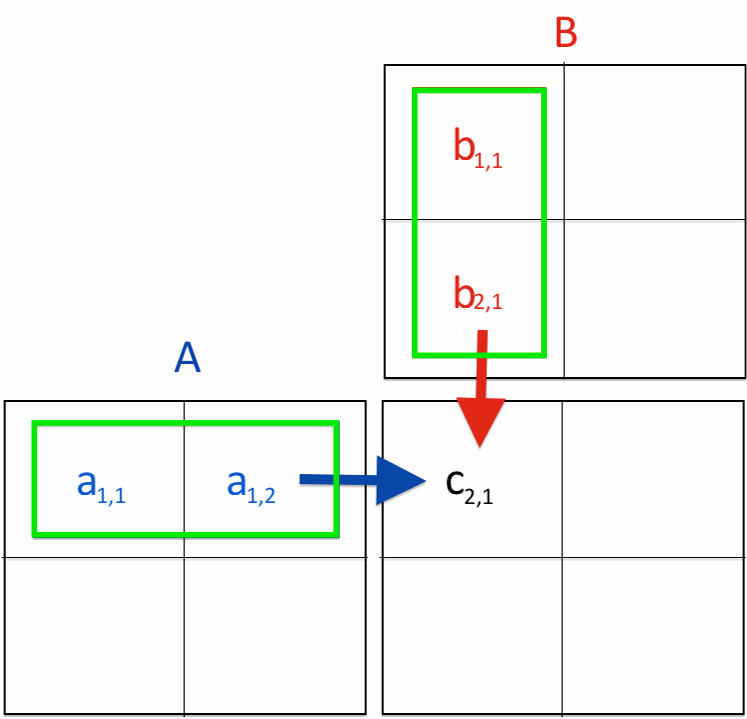

Next, we will examine a basic example of matrix multiplication, a computation that inherently relies on nested loops. Understanding this example will provide valuable insights into handling nested loops effectively, which is a common scenario in parallel computing.

Allocating the CPU memory for A, B, and C matrices. Here, we notice that the matrix is stored in a 1D array because we want to consider the same function concept for CPU and GPU.

// Initialize the memory on the host
float *restrict a, *restrict b, *restrict c;

// Allocate host memory
a  = (float*)malloc(sizeof(float) * (N*N));
b  = (float*)malloc(sizeof(float) * (N*N));
c  = (float*)malloc(sizeof(float) * (N*N));

Now, we need to fill in the values for the matrix A and B.

// Initialize host matrix
for(int i = 0; i < (N*N); i++)
   {
    a[i] = 2.0f;
    b[i] = 2.0f;
   }

Calling function

// Function call
Matrix_Multiplication(d_a, d_b, d_c, N);

Deallocate the host memory

// Deallocate host memory
free(a);
free(b);
free(c);

Questions and Solutions¶

Examples: Matrix Multiplication

Serial-version

#include<stdio.h>
#include<stdlib.h>

void Matrix_Multiplication(float *h_a, float *h_b, float *h_c, int width)
{
  for(int row = 0; row < width ; ++row)
    {
      for(int col = 0; col < width ; ++col)
        {
          float temp = 0;
          for(int i = 0; i < width ; ++i)
            {
              temp += h_a[row*width+i] * h_b[i*width+col];
            }
          h_c[row*width+col] = temp;
        }
    }
}

int main()
{
  printf("Programme assumes that matrix size is N*N \n");
  printf("Please enter the N size number \n");
  int N = 0;
  scanf("%d", &N);

  // Initialize the memory on the host
  float *a, *b, *c;

  // Allocate host memory
  a = (float*)malloc(sizeof(float) * (N*N));
  b = (float*)malloc(sizeof(float) * (N*N));
  c = (float*)malloc(sizeof(float) * (N*N));

  // Initialize host matrix
  for(int i = 0; i < (N*N); i++)
    {
      a[i] = 1.0f;
      b[i] = 2.0f;
    }

  // Device function call
  Matrix_Multiplication(a, b, c, N);

  // Verification
  for(int i = 0; i < N; i++)
    {
      for(int j = 0; j < N; j++)
        {
          printf("%f ", c[j]);
        }
    }

  // Deallocate host memory
  free(a);
  free(b);
  free(c);

  return 0;
}

OpenACC-template

#include<stdio.h>
#include<stdlib.h>
#include<openacc.h>
#include<stdbool.h>

void Matrix_Multiplication(float *restrict a, float *restrict b, float *restrict c, int width)
{
  int length = width*width;
  float sum = 0;
//#pragma acc ....
//#pragma acc ....
 for(int row = 0; row < width ; ++row)
    {
      for(int col = 0; col < width ; ++col)
        {
          for(int i = 0; i < width ; ++i)
            {
              sum += a[row*width+i] * b[i*width+col];
            }
          c[row*width+col] = sum;
          sum=0;
        }
    }
}

void CPU_Matrix_Multiplication(float *h_a, float *h_b, float *h_c, int width)
{
  for(int row = 0; row < width ; ++row)
    {
      for(int col = 0; col < width ; ++col)
        {
          float single_entry = 0;
          for(int i = 0; i < width ; ++i)
            {
              single_entry += h_a[row*width+i] * h_b[i*width+col];
            }
          h_c[row*width+col] = single_entry;
        }
    }
}

int main()
{
  printf("Programme assumes that matrix size is N*N \n");
  printf("Please enter the N size number \n");
  int N = 0;
  scanf("%d", &N);

  float *a, *b, *c, *host_check;

  for(int i = 0; i < (N*N); i++)
    {
      a[i] = 2.0f;
      b[i] = 2.0f;
    }

  Matrix_Multiplication(a, b, c, N);
  CPU_Matrix_Multiplication(a, b, host_check, N);

  bool flag=1;
  for(int i = 0; i < N; i++)
    {
     for(int j = 0; j < N; j++)
       {
         if(c[j*N+i] != host_check[j*N+i])
           { flag=0; break; }
       }
    }
  if (flag==0)
    printf("Two matrices are not equal\n");
  else
    printf("Two matrices are equal\n");

  free(a); free(b); free(c);
  return 0;
}

OpenACC-version

#include<stdio.h>
#include<stdlib.h>
#include<openacc.h>
#include<stdbool.h>

void Matrix_Multiplication(float *restrict a, float *restrict b, float *restrict c, int width)
{
  int length = width*width;
  float sum = 0;
#pragma acc parallel copyin(a[0:(length)], b[0:(length)]) copyout(c[0:(length)])
#pragma acc loop collapse(2) reduction (+:sum)
 for(int row = 0; row < width ; ++row)
    {
      for(int col = 0; col < width ; ++col)
        {
          for(int i = 0; i < width ; ++i)
            {
              sum += a[row*width+i] * b[i*width+col];
            }
          c[row*width+col] = sum;
          sum=0;
        }
    }
}

void CPU_Matrix_Multiplication(float *h_a, float *h_b, float *h_c, int width)
{
  for(int row = 0; row < width ; ++row)
    {
      for(int col = 0; col < width ; ++col)
        {
          float single_entry = 0;
          for(int i = 0; i < width ; ++i)
            {
              single_entry += h_a[row*width+i] * h_b[i*width+col];
            }
          h_c[row*width+col] = single_entry;
        }
    }
}

int main()
{
  int N = 0;
  printf("Programme assumes that matrix (square matrix) size is N*N\n");
  printf("Please enter the N size number\n");
  scanf("%d", &N);

  float *a, *b, *c, *host_check;

  a          = (float*)malloc(sizeof(float) * (N*N));
  b          = (float*)malloc(sizeof(float) * (N*N));
  c          = (float*)malloc(sizeof(float) * (N*N));
  host_check = (float*)malloc(sizeof(float) * (N*N));

  for(int i = 0; i < (N*N); i++)
    { a[i] = 2.0f; b[i] = 2.0f; }

  Matrix_Multiplication(a, b, c, N);
  CPU_Matrix_Multiplication(a, b, host_check, N);

  bool flag=1;
  for(int i = 0; i < N; i++)
    {
     for(int j = 0; j < N; j++)
       {
         if(c[j*N+i] != host_check[j*N+i])
           { flag=0; break; }
       }
    }
  if (flag==0)
    printf("Two matrices are not equal\n");
  else
    printf("Two matrices are equal\n");

  free(a); free(b); free(c); free(host_check);
  return 0;
}

Thread Levels of Parallelism¶

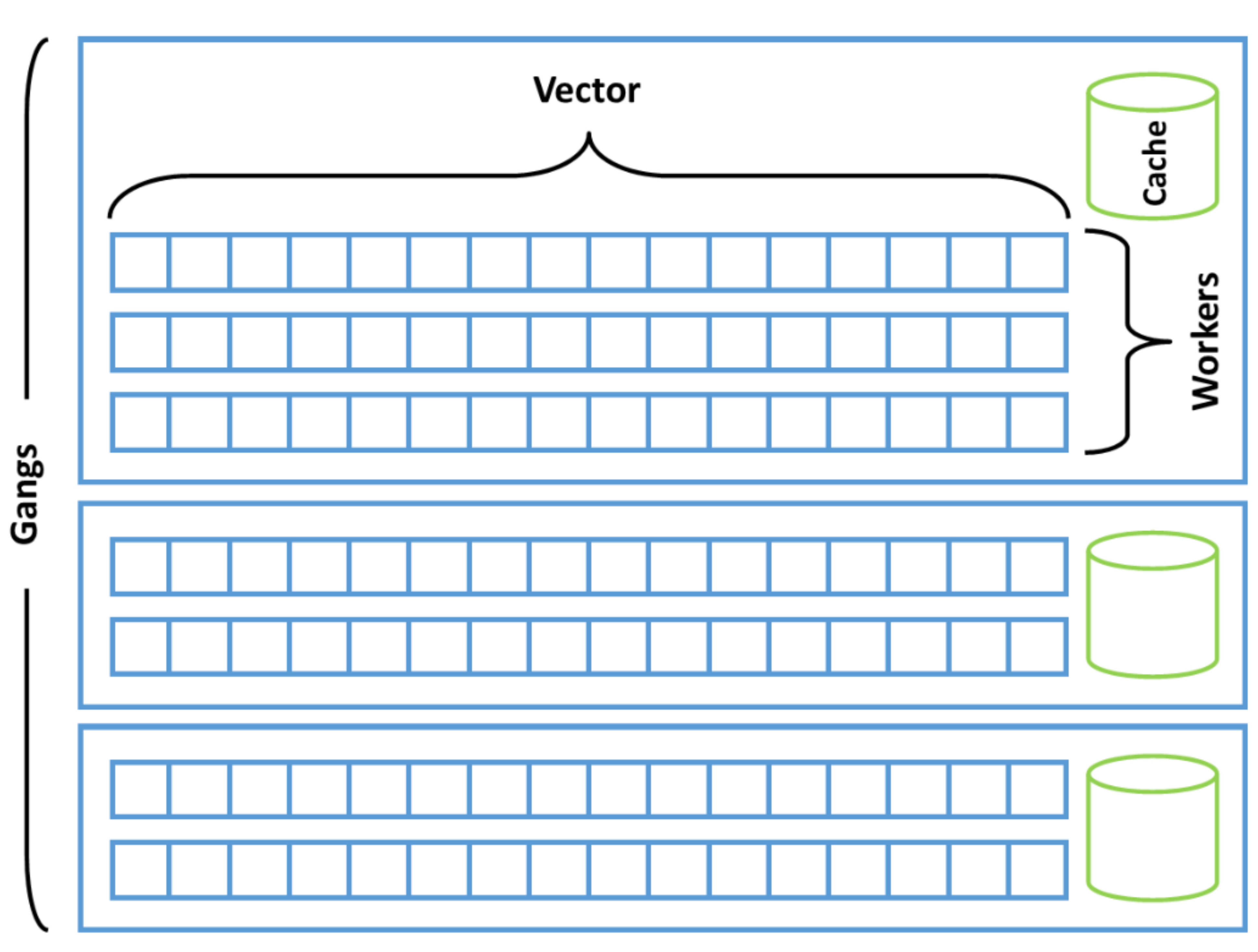

By default, the compiler selects the most effective configuration of thread blocks necessary for computation. However, programmers have the ability to control these thread blocks within their applications. OpenACC offers clear directives that enable the manipulation of threads and thread blocks effectively.

../_images/OpenACC-Gang-Workers-Vector.png

OpenACC	CUDA	Parallelism
num_gangs	Grid Block	coarse
num_workers	Warps	fine
vector_length	Threads	SIMD or vector

This table illustrates the relationship between OpenACC and CUDA in terms of parallelism levels. Understanding these distinctions is crucial for optimizing performance in parallel computing.
